C60BP are multi-standard miniature circuit breakers and branch circuit protection as
defined by UL 489. It combines following functions:
- circuit protection against short-circuit currents
- circuit protection against overload currents
- tripping and fault indication by the addition of auxiliaries.
C60BPR are multi-standard miniature circuit breakers and branch circuit protection as
defined by UL 489. It combines following functions:
- circuit protection against short-circuit currents
- circuit protection against overload currents
- tripping and fault indication by the addition of auxiliaries
- IP2X ring tongue terminal connection.
C60SP are multi-standard miniature circuit breakers and supplementary protection
as defined by UL 1077. It combines following functions:
- circuit protection against short-circuit currents
- circuit protection against overload currents
- tripping and fault indication by the addition of auxiliaries.
C60H-DC are multi-standard miniature circuit breakers and supplementary protection
as defined by UL 1077 dedicated to direct current. It combines following functions:
- circuit protection against short-circuit currents,
- circuit protection against overload currents,
- tripping and fault indication by the addition of auxiliaries.
Electrical Auxiliaries
Breaking Capacity (kA)

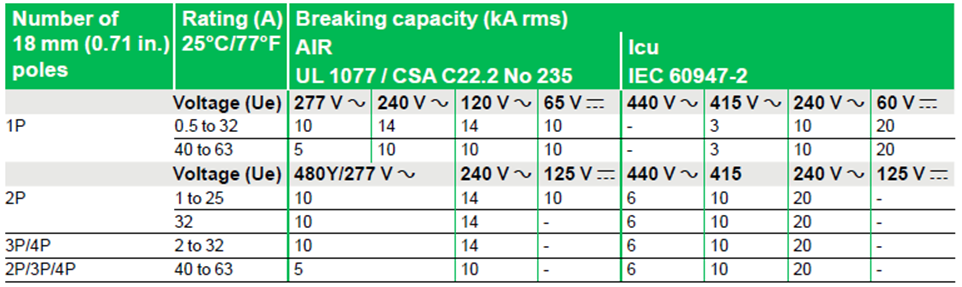

C60SP
C60BP and C60BPR

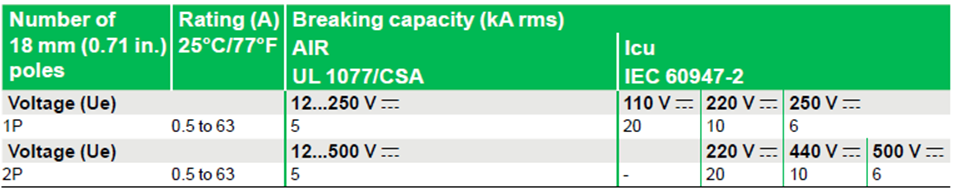

C60H-DC

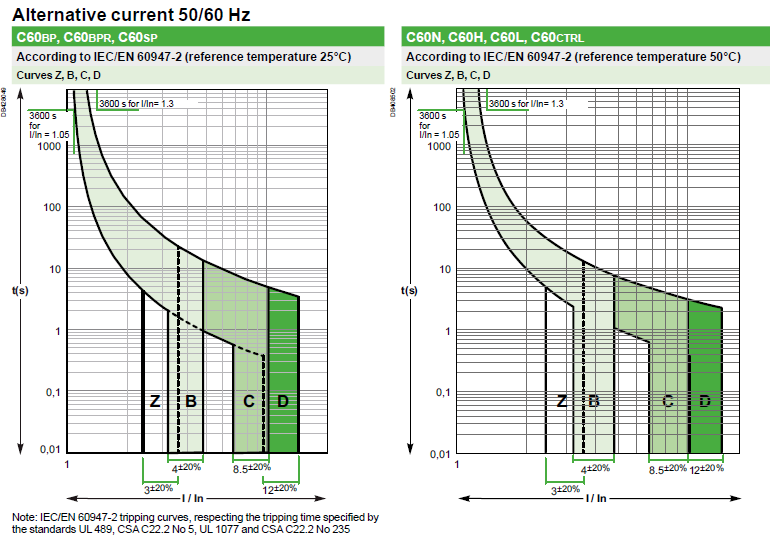

Click on this link for information on Tripping Curves

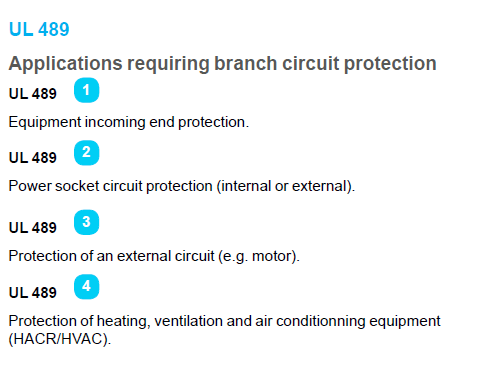

Application Example, Circuit Breaker and Supplementary Protectors
See the Catalog for full information.

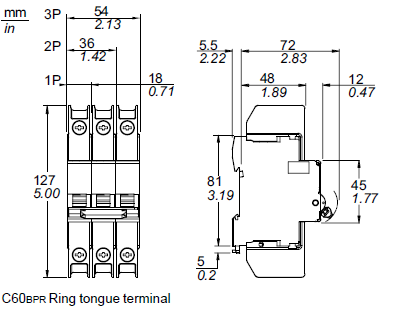

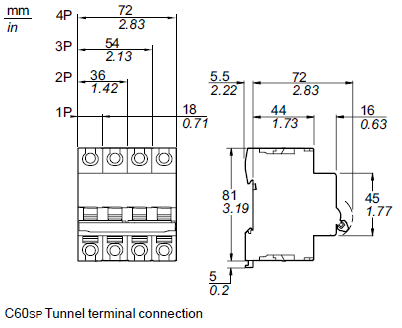

Dimensions
