Type M and T Integral Horsepower Starters





Useful Links:

Video: How to use this EZ Selector

DigestPLUS Online Catalog and More

Manual Starters and Switches Selection Guide

Instruction Bulletin for Manual Motor Starters Type M and Type T - Instruction Bulletin 30072-013-20

Cross Reference Tool - find Schneider Electric equivalents for many obsolete and competitor products.











Features:

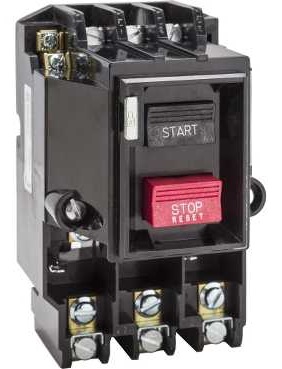

Type M and T Integral Horsepower Starters offer convenient “On-Off” operation of small single phase, polyphase, or DC motors.

• Available in NEMA Sizes M-0, M-1, and M-1P
• Poles
  • AC: Two poles single phase; three poles polyphase
  • DC: 2 poles (without Low Voltage Protection only)
• 600 Vac and 250 Vdc maximum
• Reliable overload protection
  • Melting alloy thermal overload relays have provisions for one Type B thermal unit for single phase starters and three type B thermal units for three phase starters (All thermal units must be installed and the device reset before the starter contacts will operate)
• Operator

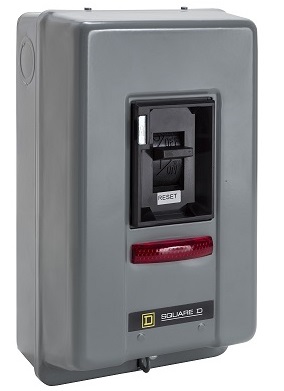

  • Push button or toggle operator in open and NEMA Type 1

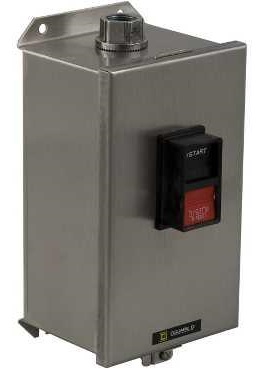

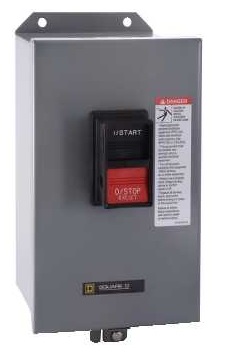

  • Direct-acting push button only on NEMA Types 4 and 12

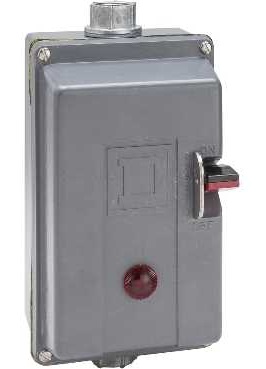

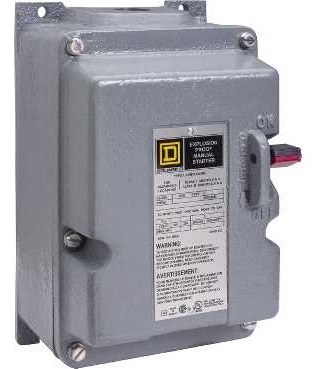

  • External toggle to actuate a push button device inside on NEMA Types 4X, 7 & 9
• Convenient mechanism Lock Off
  • Available on Both open devices and starters in NEMA Type 1 (surface/flush mounting)
  • Locked in Off or Stop position  - NEMA Types 4, 4X, 7 & 9, and 12 enclosures
  • Locked closed to prevent unauthorized entry - NEMA Type 1 surface mounting, 4, 4X, 7 & 9 and 12 enclosures
• Power terminals have pressure wire or box lug. Auxiliary interlock terminals have pressure wire
• Auxiliary contacts N.O. or N.C. for AC loads only

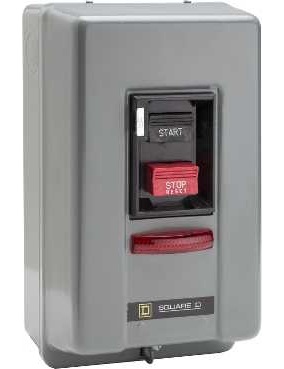

• Red pilot light kits are available for use on various voltages between 100 and 600 V for convenience
• Meets UL and CSA requirements
• Reversing manual starters consist of two mechanically interlocked Type M or T manual starters.
  • Available in NEMA Type 1 surface-mounting enclosures or as open type
• Two-speed manual starters are for wye-connected separate winding motors only.
  • Consist of two mechanically interlocked Type M or T manual starters

Benefits:

• Inexpensive motor control where low voltage protection is NOT required
• Reliable melting alloy thermal units
• Simple Operation

Typical Applications:

• Simple Machine Control
• HVAC
• Small machine tools
• Pumps
• Fans
• Conveyors
